Top quality high performance sprayguns RP and HVLP

HVLP low pressure and RP optimized high pressure technology are the trends of the future for compressed air driven paint sprayguns.

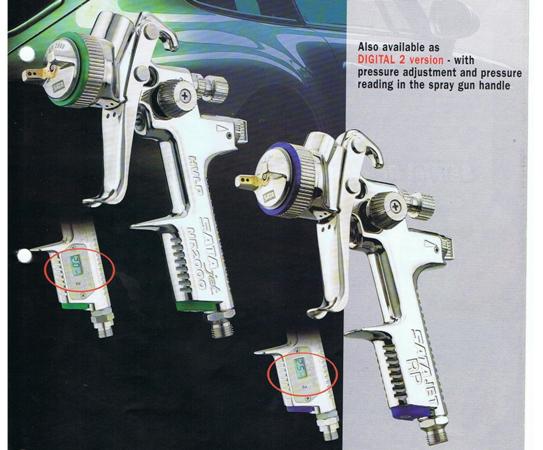

Full comprehensive range of Sata sprayguns available with digital readout as standard all competively priced.

VOC legislation - All guns offered comply with VOC legislations and exceed by far the transfer efficiency rate of 65%

?

?

?

?

Older and piston driven compressors will have a high condensateand oil out put. Using a Sata combination filter unit will ensure every job will be blemish free.

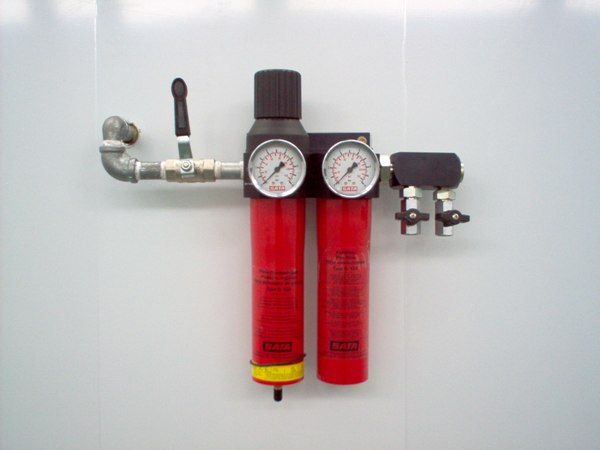

Sata combination filter installed in spraybooth normaly will require central location preferably at low chest height and a 9m air line connection for optimum flexibillty when painting a car.

Sata combination filter will eliminate oil and water from the air line and produce 100% clean air for connection to full face fresh air mask.

Stage 1 filter cartridge seperates particals larger than 5 microns as well as condensation and oil. When condensation reaches a certain level, there is a built in automatic discharge pressurising the condensate and forcing it out throught the drain hose.

Stage 2 filter cartridge seperatesc tiny particles according to the filtration capacity  of the cartridge used. ( 0.01 microns) The filter contains an activated charcoal cartidge removing all impurities. Cartridge life cycle 6 months

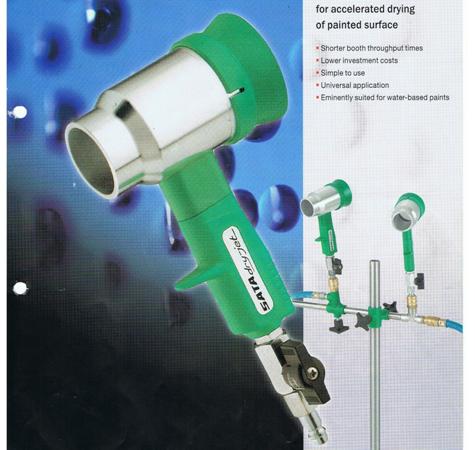

For accelerated drying of waterbased paints using compressed air and  air from within the booth using the venturi injector system.

Provides shorter booth throughput times, lower investment costs and capable of universal application.

Individual hand held units available or supplied with mobile stand with 2 blowers attached per stand - adjustable for height and 360 degree direction.
